Slide 4 of 12

Notes:

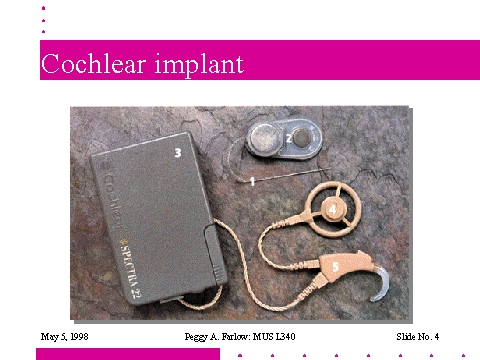

The various components are:

1. The electrode array (which is placed in the inner ear).

2. The receiver for the electrode array.

3. The speech processor, a small electronics package that typically is placed in the wearer's pocket.

4. Transmitting coil and

5. Microphone, both of which are worn behind the ear.
